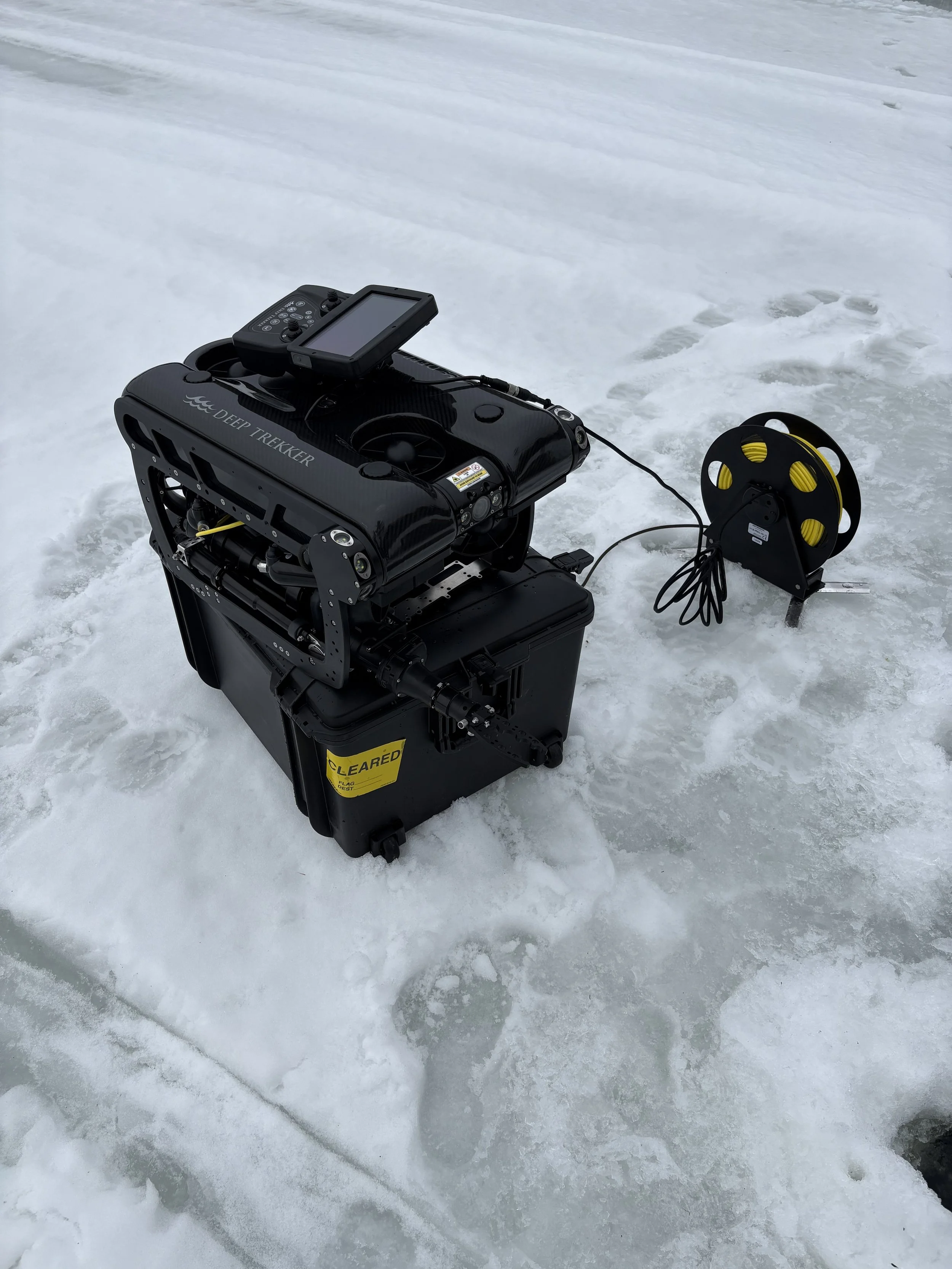

Set up for dive under the ice.
Phillips Lake, Maine
ROV Specifications
Professional-Grade Underwater ROV Platform
Dirigo Deeptech operates a Deep Trekker Pivot ROV, a compact, rugged underwater vehicle designed for reliable inspection, recovery, and exploration in both coastal and freshwater environments.
General Specifications
Width: 360 mm (14.2 in)
Height: 310 mm (12.2 in)
Length: 576 mm (22.7 in)
Weight (in air): 16.7 kg (36.8 lb)
Depth Rating: 305 m (1,000 ft) Tether is 100m (328 ft)
Operating Temperature: -5°C to 50°C (14°F – 122°F)
Construction Materials:
Anodized machined aluminum
Carbon fiber
Stainless steel
Integrated buoyancy foam
*Requires freshwater rinse after each use in salt water
Transport:
Custom Pelican Air case with handle and wheels
Propulsion & Control
Thrusters: Magnetically coupled and sealed
Thruster Control: 6 independently controlled thrusters
Control Type: Infinitely variable, 100% reversible
This configuration provides stable maneuvering and precise control in a wide range of underwater conditions. Can operate in up to 2 knots of current.
Electrical System
Battery Runtime: Up to 3 hours per battery set (conditions dependent)
2 sets of batteries and one charger are included for up to 6 plus hours of dive time. More if charger is used.
Controller & Recording
Display: 7” (178 mm) wide-angle LCD
Video Recording: Up to 4K capability
Connectivity: USB, SD card, HDMI, Ethernet
Weatherproof Controller Housing
Camera & Lighting
Video: Equipped with a 4K camera
Lighting:
High-efficiency LED lighting
Fully dimmable
1,000 lumens tracking with camera
2 External Floodlights (3400 Lumens)
Tether
Minimum Breaking Strength: 90 kg (200 lb)
Grabber Arm/Other
Claw opens to 5" (127mm) Closes with 70lbs (32kg) of Force
Sensor Package (Heading, Depth, etc) and laser scaler included
Specifications listed are manufacturer-provided and subject to operating conditions, configuration, and environmental factors.
